Uniform Surface Finishing Robotic Buffing Machine For Automotive
Robotic Buffing for Consistent Automotive Surface Appearance
The Uniform Surface Finishing Robotic Buffing Machine for Automotive Parts is designed for manufacturers that require controlled, repeatable surface finishing on automotive metal components.
Using an industrial robot combined with professional buffing equipment, the system follows programmed trajectories across the workpiece to create a more even surface appearance. It is especially suitable for automotive parts where visible polishing differences, irregular gloss, buffing marks, or difficult contours can affect final product quality.
The machine can be adapted to aluminum, stainless steel, steel, and other suitable automotive metal components.
Uniform Finish Across Complex Surfaces
Automotive components often combine flat areas, curves, edges, corners, and transitions within one workpiece.
Manual buffing can produce different results when pressure, angle, or movement changes from one area to another.
Robotic buffing allows important processing variables to be controlled through the programmed process, including:
- Robot trajectory
- Buffing angle
- Contact position
- Processing speed
- Buffing sequence
- Wheel approach direction
This makes the system suitable for components requiring a visually uniform finish across multiple surfaces.

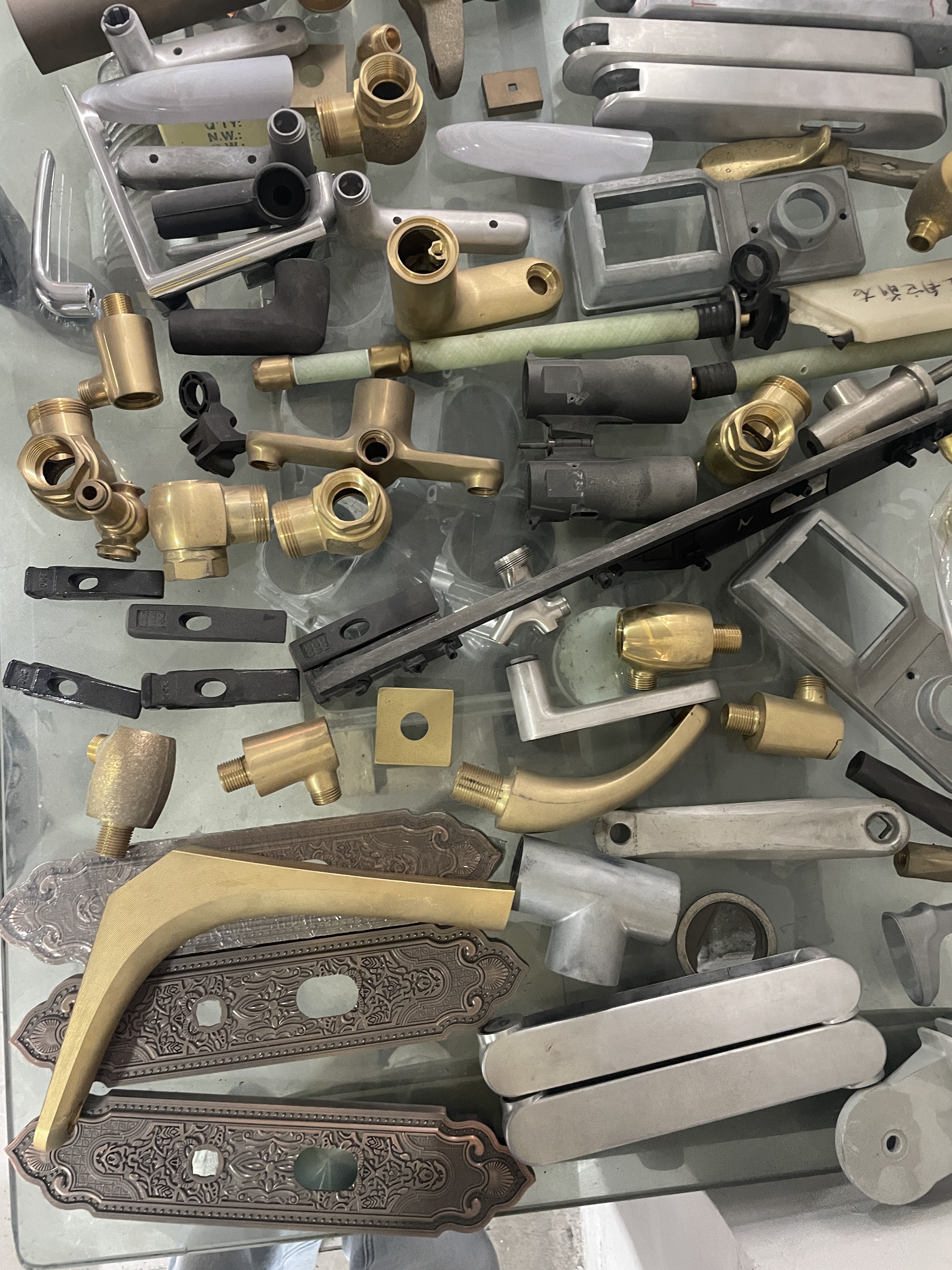

Automotive Applications
The robotic buffing machine can be customized for various automotive components, including:
- Aluminum trim components
- Stainless steel decorative parts
- Exhaust components
- Automotive handles
- Metal covers
- Wheel-related components
- Interior metal trim
- Exterior decorative parts
- Motorcycle components
- EV metal components
For visible automotive parts, the system can be configured as a finishing stage before final inspection, coating, plating, or assembly.
Reduce Common Surface Finishing Defects
Uneven Gloss
Different manual buffing pressure can create visible variations across the same component.
Robotic solution: Repeatable movement helps maintain a more controlled finishing process.
Local Over-Polishing
Excessive polishing in one area may change the appearance or geometry of the component.
Robotic solution: Defined trajectories help control where and how the buffing wheel contacts the part.
Missed Areas
Complex automotive parts may contain transitions that are easily overlooked during repetitive manual work.
Robotic solution: The programmed path can cover predefined finishing areas in a fixed sequence.
Inconsistent Appearance Between Batches
Differences between operators or shifts can affect the appearance of finished products.
Robotic solution: Saved processing programs can be reused for repeat orders and production batches.
Flexible Buffing Process for Different Auto Parts
Automotive finishing requirements vary according to the material and final appearance of the component.
The robotic system can be configured with different:
- Buffing wheels
- Polishing compounds
- Workpiece fixtures
- Robot programs
- Positioning devices
- Finishing sequences
For compatible product families, different processing recipes can be stored and selected according to the component being produced.
The objective is to develop the buffing process around the actual automotive part rather than applying one fixed polishing method to every product.
Frequently Asked Questions
What automotive parts can be buffed by robot?
The system is suitable for standardized metal components with defined finishing areas, including decorative trim, handles, covers, exhaust parts, aluminum components, and other automotive hardware.
Can it buff aluminum automotive parts?
Yes. Robotic buffing can be configured for suitable aluminum components using appropriate wheels, compounds, and processing parameters.
Can the robot handle curved surfaces?
Yes. One of the main advantages of robotic finishing is its ability to follow programmed paths around suitable curved and three-dimensional surfaces.
Can the machine reduce buffing marks?
A properly developed robotic process can help reduce variations caused by inconsistent manual movement. Final results depend on the original surface, material, buffing tools, compound, and required finish.
