Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head

  • 1
  • 2
  • 3

Payment Terms : L/C,D/A,D/P,T/T

Motor Power : 2.2 kW

Use : Metal polishing

Certifications : CE, ISO 9001, SGS

Polishing Transfer Rate : 0-10M/min(adjustable)

Model Number : KS-CNC2

Min Diameter : 400mm

MOQ : 1

Delivery Time : 90 WORKING DAYS

Process Usage : Glass Polishing

Source Pressure : ≥0.55MPa

Price : 65000-98000 USD

Movement Method : Contour Control

Main Motor Power : 4KW

Certification : CE

Thickness : 0.5~3mm

Place of Origin : CHINA

Temperature : tank polishing machine

Supply Ability : 200-300 SETS PER YEAR

Consumable Specification : 100*3000mm

Consumable Specifications : Φ300*50mm

Brand Name : KINGSTONE

Drive System : Servo Motor

Packaging Details : WOODEN CASES

Numerical Control : CNC/MNC

Contact Now

Fully-automatic Multi-station CNC Polishing Machine For Hammer Head
From Forging to Finished — One Cell, Zero Hand Grinding

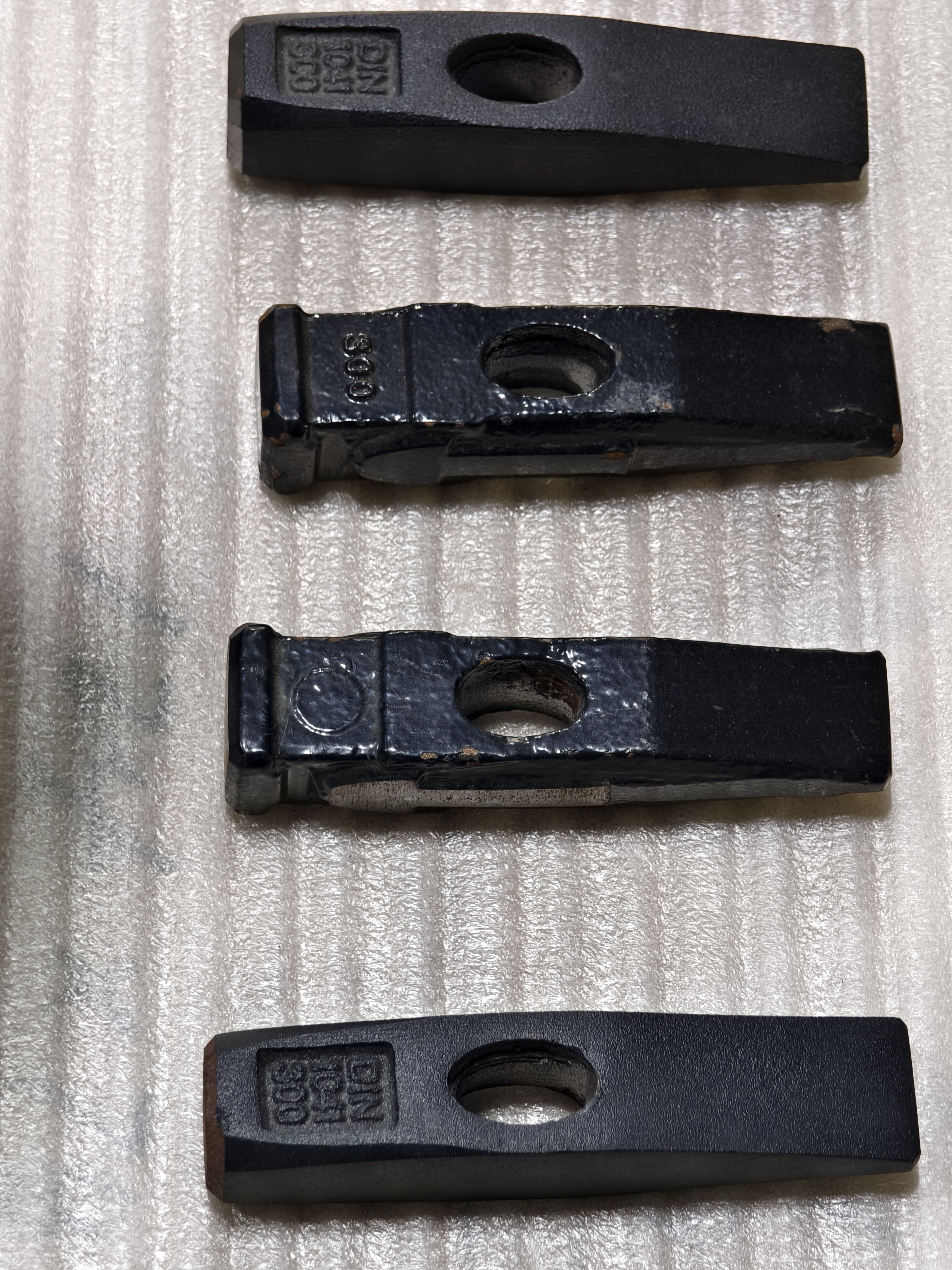

A multi-station CNC polishing machine built for forged hammer heads: claw hammers, fitter's hammers (DIN 1041), sledge hammers and ball-peen hammers. Remove forging flash, deburr the eye hole and condition the surface for painting — automatically, at production speed.

Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Trust Elements:
  • CE-certified / ISO 9001 factory
  • Free trial: send us your hammer head — we return it with a before/after report and surface data
  • 18-24 month payback model based on your local labor cost
The Problem We Solve
Hammer manufacturers leave money on the table three ways: rejected export lots from leftover forging flash, high labor cost of hand grinding benches, and inconsistent paint finish caused by uneven surface preparation. This machine replaces manual bench grinding with a programmable multi-station polishing cell that finishes every hammer head identically — shift after shift, lot after lot.
Core Selling Points
Precision — High-Precision
  • 5-axis motion path with ±0.01 mm repeat positioning
  • Force-controlled floating spindle: constant contact pressure, no over-grinding on striking face
  • Consistent edge geometry from part #1 to part #50,000
Automation — Fully-Automatic
  • One operator runs the whole cell; auto-indexing between stations
  • Optional robotic loading/unloading for line integration
  • PLC interface ready for MES data collection
Performance — High-Efficiency
  • Multi-station parallel processing: cycle time per hammer head as low as ___ seconds
  • 3-5x faster than manual bench grinding, predictable daily output
Process Capability — Multi-Process
  • One cell covers: forging flash removal -> contour grinding -> eye-hole deburring -> surface conditioning
  • Program changeover between hammer models in < 15 minutes (fixture + program)
Quality Consistency — Repeatable Quality
  • Process parameters locked in program, zero human variance
  • Uniform surface profile = stable paint adhesion and coating thickness
  • Batch traceability with first-article inspection reports
User-Friendly — Easy-to-Operate
  • Touchscreen HMI, bilingual (EN/CN) interface
  • New operator productive within 3 days — no skilled grinder required
  • Quick-change abrasives and fixtures, tool-free where possible
Economy — Cost-Effective
  • Energy consumption: approx. ___ kWh, no hidden shift costs
  • Abrasive consumption reduced 30%+ vs. hand grinding
  • Payback typically 18-24 months based on local labor cost (free calculation on request)
Process Flow
  1. Load & clamp hammer head (quick-change fixture)
  2. Call up the program for that hammer model
  3. Flash removal: strip forging flash and parting-line excess
  4. Contour grinding: blend edges and striking-face geometry
  5. Eye-hole deburring: clean the handle eye, no sharp edges
  6. Surface conditioning: uniform profile ready for painting
  7. Inspection (optional: roughness / dimensional spot check)
  8. Unload to packaging or assembly line
Frequently Asked Questions
Product Basics
Q1: Which hammer heads can this machine process?
A: Claw hammers, fitter's hammers (DIN 1041), sledge hammers, ball-peen hammers and more — forged carbon steel or stainless steel, from 100g to ___ kg.
Q2: Does one machine really do flash removal AND polishing?
A: Yes. The multi-station design runs different processes in sequence: flash removal, contour grinding, eye-hole deburring and surface conditioning — all in one cell with no manual transfer.
Q3: Can it handle the eye hole (handle hole)?
A: Yes. Eye-hole deburring is a standard program — removes internal sharp edges that are the #1 source of hand-injury complaints and QC rejects.
Purchase Decision
Q4: Do you offer a free trial?
A: Yes. Send us your hammer head or 3D drawing — we trial-polish it and return a before/after report with surface roughness data.
Q5: How long does model changeover take?
A: Fixture swap + program recall in about 15 minutes. No special programming skill needed.
Q6: What about delivery time and warranty?
A: Standard models ship in about ___ days; 12-month warranty with remote support, optional on-site installation and training.
Investment & Long-Term
Q7: What is the payback period?
A: Typically 18-24 months, depending on your local labor cost and output. We provide a free ROI sheet using your actual numbers.
Q8: Is training and ongoing support available?
A: Yes — operator training (on-site or video), lifetime remote technical support, and long-term supply of consumables.
