Automatic CNC Grinding Machine Deburring Station for Stainless Steel Casting Parts

Name: Automatic CNC Grinding Machine Deburring Station for Stainless Steel Casting Parts
Brand: Kingstone
Price: 65000 USD

Quality Automatic CNC Grinding Machine Deburring Station for Stainless Steel Casting Parts for sale

Payment Terms : T/T

After-sales Service Provided : Field installation, commissioning and training

Model Number : KS-20250207

core components : Motor, Bearing, Engine, Gearbox, Gear

MOQ : 1

Delivery Time : 2.5 months

video outgoing-inspection : Provided

Max. Grinding Diameter : Diameter750*High500mm

Price : 65000-85000

Function : Grinding and polishing,cutting

Certification : ce

key selling points : High Productivity

Supply Ability : 5sets per month

Grinding wheel : Diamond Grinding Wheel

Brand Name : Kingstone

voltage : 380v

Packaging Details : wooden cases

Advantage : Equipped with large diamond wheel and small grinding spindle

Place of Origin : China

machinery test report : Provided

Contact Now

CNC Grinding Machine Automatic Deburring Machine for Stainless Steel Casting Parts

Machine Features

1. This equipment is a mechanical arm type CNC grinding workstation with multiple degrees of freedom, which is flexible and efficient;
2. The workbench adopts an exchangeable rotary workbench and a quick-change tooling design. The workpiece can be loaded and unloaded at the clamping position while the workpiece is being processed, which is safer and more reliable, and can greatly improve production efficiency;

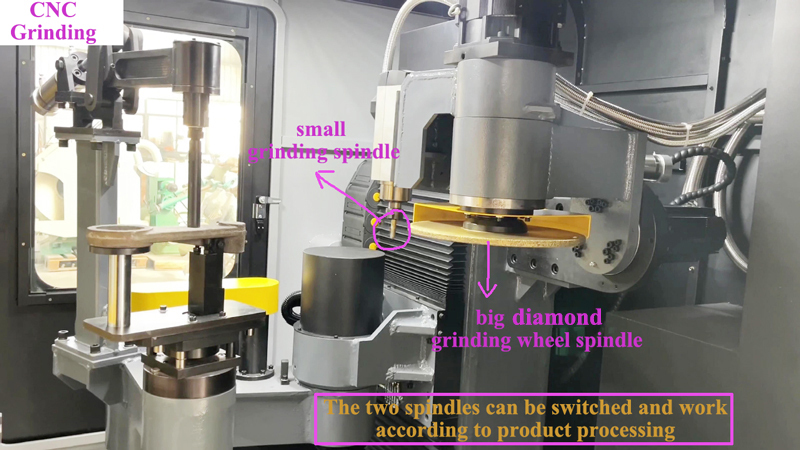

3. The grinding spindle is equipped with a large diamond grinding wheel spindle and a small grinding spindle, which can be automatically switched according to the processing technology. The large diamond grinding wheel spindle is suitable for rapid grinding of large contours, and the small grinding spindle is suitable for grinding small inner holes and inner arc corners, which can meet the grinding needs of different parts;
4. The control system adopts today's advanced numerical control system with stable performance and high control precision;
5. The machine base, column, and mechanical arm have strong structural rigidity, and the machine tool has good stability;
6. Fully enclosed protection design, the outside can be connected to the dust removal pipeline, which can reduce the damage to the human body caused by dust and noise. The clamping station is equipped with a light curtain, which makes the operation safer and more reliable.

Specification

Model Specifications	CJR7550-100
Maximum grinding workpiece size (Diameter φ * Height)	Φ750*H500mm
Workpiece maximum grinding weight	0-100kg
Spindle grinding wheel	Diamond grinding wheel (T12*φ405mm)
Spindle motor	7.5kw
Spindle speed	10~2000r/min
Grinding spindle rotation angle	0～90° (spindle can be converted from vertical to horizontal from 0 to 90°)
Auxiliary shaft speed	10000~24000r/min
Equipment Dimensions (mm)	300033502600mm
Equipment weight (t)	6
Workpiece processing form	Double station rotation, main axis + auxiliary axis

Application

1. Deburring and grinding of cast iron parts, such as automobile cylinder head, flywheel cover, clutch housing, chain cover, etc.
2. Deburring and grinding of cast aluminum parts, such as grinding wheel hubs, automobile hubs, etc.

3. All kinds of hardware and jewelry polishing.

Packing & Delivery

1. Plastic film packaging and put in plywood woodencases or according to customer's requirements.

2. Shipping: usually by sea,container transport
